Networks and Infrastructure Studio
Complete network infrastructure — from copper to fiber, from switch to cloud
Why It Matters
The Cost of Poor Cabling
Messy Cables
Tangled, unlabeled cables make every troubleshooting session a guessing game — wasting hours and patience.
Network Downtime
Unreliable connections cause random drops that halt productivity and frustrate your entire team.
Expensive Troubleshooting
Technicians spend billable hours tracing cables instead of fixing root causes — burning through your budget.
Cable Types Guide
Understanding Ethernet & Fiber Cables
Choosing the right cable is critical for performance and future-proofing. Here's what we recommend for each environment.
Ethernet Cables (Copper)
Cat5e
GoodEntry-level cable for small offices with minimal bandwidth needs. Supports Gigabit Ethernet but limited headroom for future upgrades.
Cat6
BetterThe sweet spot for most businesses. Supports 10 Gigabit at shorter distances with reduced crosstalk. Excellent price-to-performance ratio.
Cat6a
BestFull 10 Gigabit performance at 100 meters. Shielded variants eliminate alien crosstalk. Our recommended standard for new installations.
Cat7
PremiumFully shielded with individual pair shielding. Supports 10 Gigabit with room for growth. Higher cost but maximum protection against interference.
Fiber Optic Cables
Single-Mode Fiber (OS2)
Thin core that carries a single light ray. Used for long-distance connections between buildings, campuses, or across cities. Maximum bandwidth and distance.
Multi-Mode Fiber (OM3/OM4)
Wider core that carries multiple light modes. Ideal for connecting floors in a building or linking nearby structures. Cost-effective for short high-speed runs.
💡 Our Recommendation
For most Kampala offices, we recommend Cat6a for horizontal runs (workstation to patch panel) and single-mode fiberfor building backbone connections. This combination delivers 10 Gigabit speeds today with headroom for tomorrow's demands.
Complete Network Infrastructure
From Connector to Cloud — Every Component Explained
A structured cabling system is more than cables. It's a complete ecosystem of connectors, panels, switches, and design principles that work together.
🔌 Fiber Connectors
Fiber connectors terminate fiber optic cables and allow them to be plugged into equipment. The polish type (APC vs UPC) affects signal quality, while the connector shape (LC, SC, ST) determines compatibility.
Polish Types: APC vs UPC
UPC (Ultra Physical Contact)
Flat polish on the ferrule tip. Provides excellent return loss for digital data signals. The most common connector type for enterprise networks.
APC (Angled Physical Contact)
8-degree angle on the ferrule tip. Minimizes back reflections, making it essential for CATV, RF, and high-precision applications. Never mix APC and UPC — they will damage each other.
Connector Shapes: LC, SC, ST

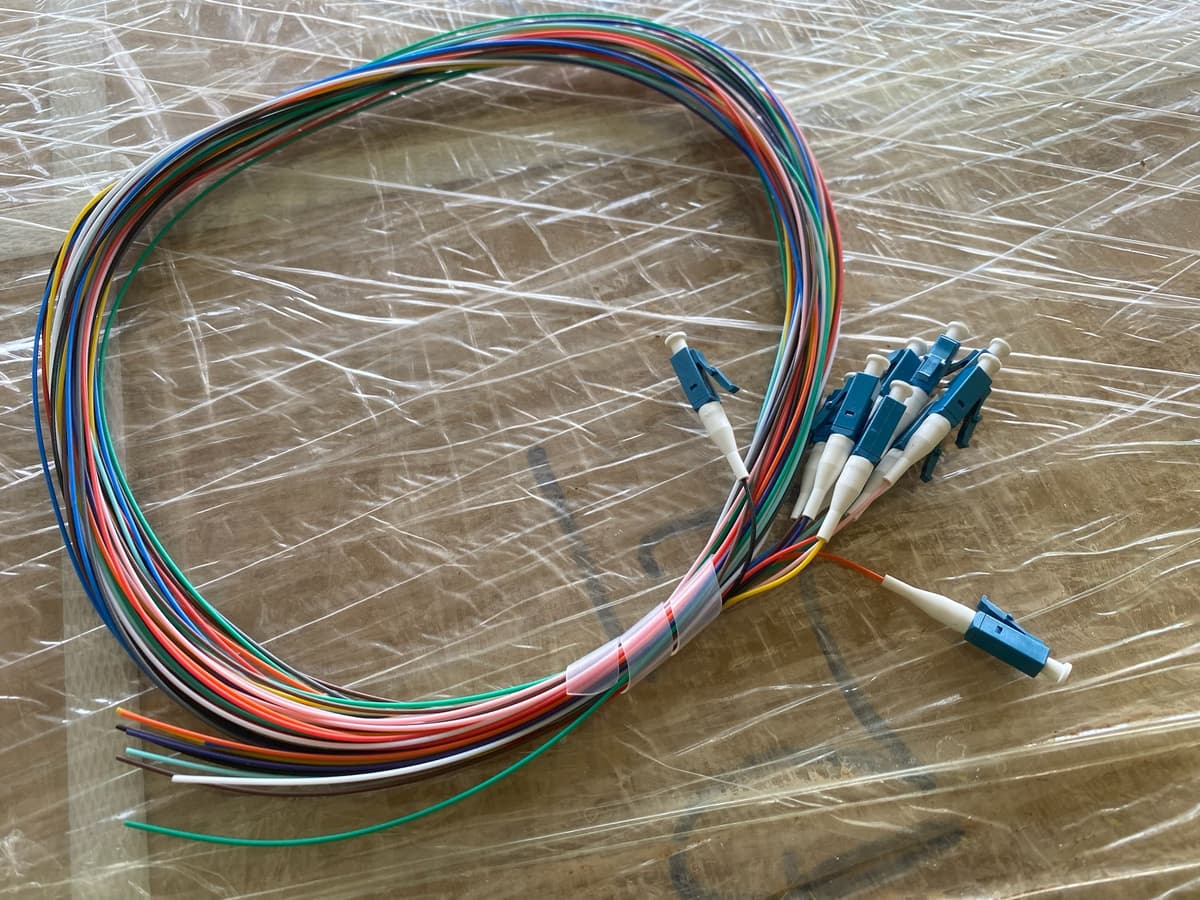

LC (Lucent Connector)
Half the size of SC. The modern standard for high-density networking. Snap-in latch similar to RJ45. Perfect for data centers and enterprise switches.
SC (Subscriber Connector)
Square-shaped connector with push-pull mechanism. Rugged and reliable. Widely used in enterprise patch panels and FTTH installations.
ST (Straight Tip)
Round connector with twist-lock mechanism. Older technology being replaced by LC and SC. Still found in legacy installations and some industrial environments.
🔗 Ethernet Connectors & Patch Panels
Patch Panel Installation
Clean, labeled patch panel installations with proper cable management — the foundation of organized network infrastructure.
RJ45 Connector
The standard connector for Ethernet networks. An 8-pin modular connector that terminates twisted-pair copper cables (Cat5e, Cat6, Cat6a, Cat7).
Key Features:
- • 8 pins, 8 conductors (4 pairs)
- • Supports Power over Ethernet (PoE)
- • Snap-in tab locking mechanism
- • Gold-plated contacts for corrosion resistance
Our Tip: Always use shielded RJ45 connectors (STP) in commercial environments to reduce EMI interference. We use Cat6a connectors rated for 10G performance.
Patch Panels
The central organizing point for all network cables. Patch panels mount in server racks and provide a clean, labeled interface for connecting equipment.
Copper Patch Panels
24/48 port RJ45 panels for Cat5e/Cat6/Cat6a cables. Each port maps to a workstation or device. Used with patch cords to connect to switches.
Fiber Patch Panels (ODF)
Optical Distribution Frames with LC/SC adapters. Organize fiber connections with built-in splice trays, cable management, and dust caps.
Server Rack Setup
Complete server rack configurations with switches, patch panels, and proper airflow management for optimal network performance.
🔀 Network Switches & Routers
Modern networks use a hierarchical design with three tiers. Each tier handles different traffic patterns and serves specific functions.
Core Layer — Core Routers & Switches
The backbone of your network
What They Do:
- • Route traffic between VLANs and subnets
- • Connect to the internet (WAN)
- • High-speed backbone switching (10G-100G)
- • Redundant failover for uptime
Examples:
- • Cisco Catalyst 9000 series
- • MikroTik CCR series
- • Ubiquiti EdgeRouter
Distribution Layer — Aggregation Switches
Traffic aggregation and policy enforcement
What They Do:
- • Aggregate access layer switches
- • VLAN routing and ACL enforcement
- • QoS (Quality of Service) policies
- • Link aggregation (LACP) for bandwidth
Examples:
- • Cisco Catalyst 3850/9300
- • MikroTik CRS series
- • Ubiquiti UniFi Switch Pro
Access Layer — Access Switches
Where devices connect to the network
What They Do:
- • Connect workstations, phones, cameras
- • PoE delivery for IP devices
- • Port security and VLAN assignment
- • 802.1X authentication
Examples:
- • Cisco Catalyst 2960/9200
- • MikroTik CRS series
- • Ubiquiti UniFi Switch
- • D-Link DGS series
📶 Wireless Networking
Modern wireless extends your wired network without cables. Access points blanket areas with WiFi, while point-to-point links bridge buildings wirelessly.
Wireless Access Points (APs)
APs extend your wired network wirelessly. Multiple APs create a seamless WiFi mesh — users roam between coverage areas without dropping connections.
Indoor APs
Ceiling or wall-mounted. Cover offices, conference rooms, lobbies. UniFi U6 Pro, Cisco Meraki MR.
Outdoor APs
Weatherproof, long-range. Cover parking lots, compounds, outdoor seating. UniFi U6 Mesh, TP-Link EAP.
Controller-Based
Centralized management for 10+ APs. Auto-channel selection, roaming optimization, guest portal. UniFi Controller, Cisco WLC.
Point-to-Point (P2P) Links
P2P wireless bridges connect two locations wirelessly — like a virtual cable through the air. Perfect for linking buildings across a compound or campus.
Use Cases
Connect office buildings, warehouses, gates — anywhere running fiber is impractical or too expensive.
Speed & Distance
Up to 450 Mbps at 15km+ line of sight. 5GHz band for interference-free operation.
Equipment
Ubiquiti airMAX, MikroTik Wireless Wire, TP-Link CPE series.
🗺️ Complete Network Design
How all components connect — from workstation to internet. This is the architecture we design for every client.
Core Router
Cisco / MikroTik
VLAN routing, Firewall
Distribution Switch
Aggregation, QoS, LACP
10G Uplinks
Access Switch
24-48 ports
PoE+
Access Switch
24-48 ports
PoE+
Access Switch
24-48 ports
PoE+
🏗️ How Backspace Designs Your Network
Every network we build follows this three-tier architecture. We start with a site survey to understand your layout, then design a structured cabling backbone that connects workstations to patch panels, patch panels to access switches, and access switches to the distribution and core layers. Fiber optic links connect floors and buildings, while wireless access pointsprovide mobility. The result: a network that's organized, scalable, and built to perform.
Fiber Optic Infrastructure
Beyond Copper — High-Speed Fiber Deployment
When copper can't keep up, fiber optic cabling delivers the speed, distance, and reliability your business demands.
Copper Limitations
Traditional copper cables degrade over distance, limiting your network to 100 meters before signal loss becomes critical.
Slow Speeds
Copper maxes out at 1Gbps. When your business needs more, copper becomes the bottleneck that holds everything back.
Distance Restrictions
Multi-building campuses and large facilities can't be reliably connected with copper — the signal just doesn't reach.
How It Works
Our 5-Step Fiber Deployment
Assessment
We evaluate your current network, bandwidth requirements, and physical layout to determine the right fiber solution.
Route Planning
Engineers design optimal fiber paths — underground ducts, aerial runs, or indoor risers — balancing cost and performance.

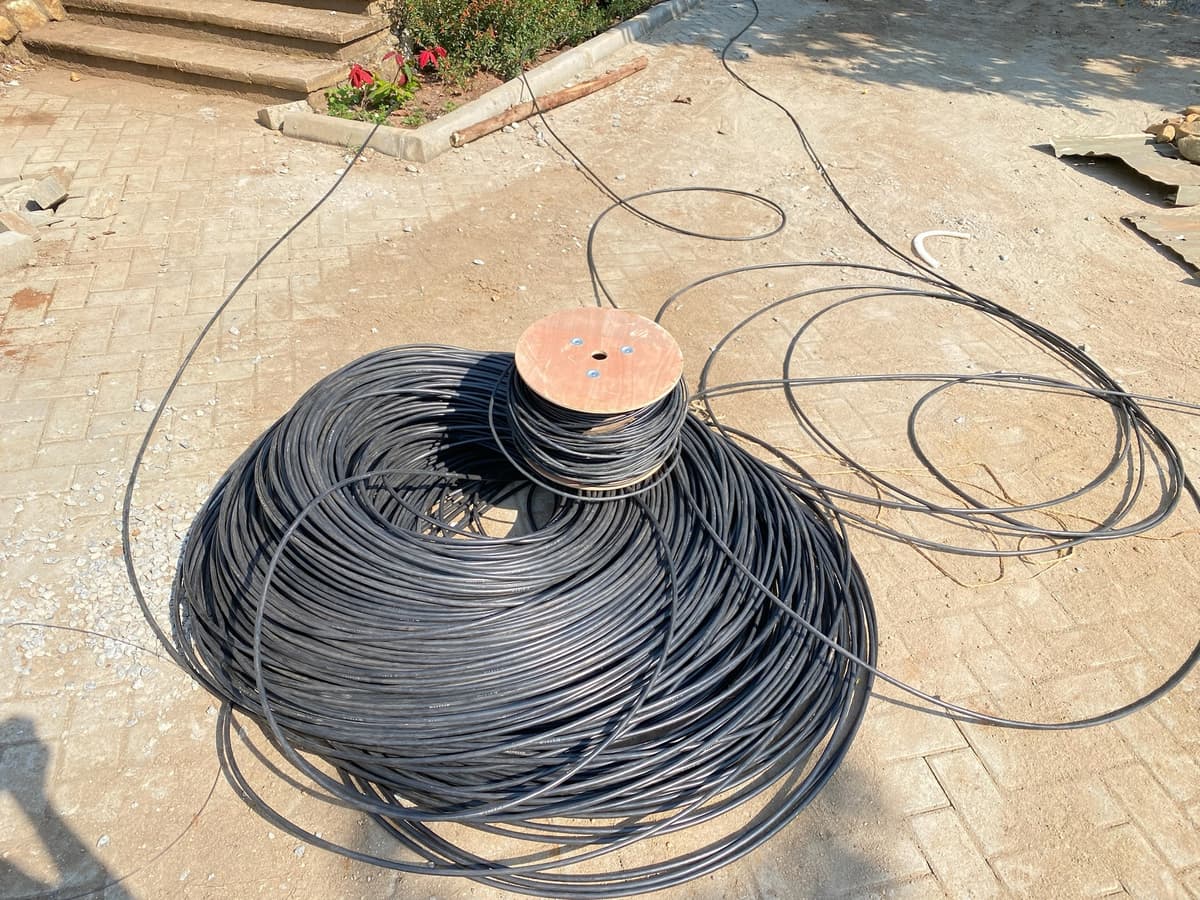

Cable Pulling
Specialized technicians pull fiber through designed routes with careful bend radius management and tension control.
Splicing
High-precision fusion splicing joins fiber segments with near-zero dB signal loss at every connection point.
Testing
OTDR testing validates end-to-end signal quality, splice loss, and overall link performance — documented with full reports.
ROI Analysis
The Value of Fiber
Faster Speeds
Fiber delivers up to 100Gbps — future-proofing your network for decades.
Network Uptime
Fiber is immune to electromagnetic interference — no more weather-related drops.
Future-Proof
Fiber infrastructure supports bandwidth upgrades without replacing cables.
Before & After
The Fiber Transformation
Before
- Copper cables maxing out at 1Gbps
- Signal degradation across buildings
- Frequent network drops during rain
- No path for future bandwidth upgrades
After
- Multi-gigabit speeds across entire campus
- Clean, interference-free signal at any distance
- Weather-proof connectivity that never drops
- Infrastructure ready for 100G and beyond
Case Study
Hotel Network Setup
Kampala
Challenge
A 120-room hotel needed high-speed WiFi in every room, but their copper backbone couldn't handle the concurrent load. Guests complained about slow internet, and the hotel was losing bookings to competitors with better connectivity.
Solution
Backspace deployed a single-mode fiber backbone connecting all 4 floors, with multi-mode fiber for high-density areas like conference rooms and the lobby. Fusion spliced at every junction with OTDR-verified performance.
Results
- Guest WiFi satisfaction scores increased from 2.1 to 4.8 stars
- Concurrent connections increased from 80 to 500+ without degradation
- Hotel regained premium WiFi marketing as a competitive advantage
- Zero fiber-related downtime in 18 months of operation
FAQ
Fiber Optic Questions
Single-mode vs multi-mode — which do I need?
Single-mode is ideal for long-distance runs (buildings, campus-wide) and higher bandwidth. Multi-mode is cost-effective for shorter runs within buildings. We'll recommend the right mix during the assessment.
How fast is fiber optic internet?
Fiber supports speeds from 1Gbps to 100Gbps depending on equipment. The cable itself has virtually unlimited bandwidth — speed is determined by the transceivers and switches at each end.
How long does fiber installation take?
A typical hotel or office deployment takes 3-7 days depending on the number of floors, route complexity, and whether underground ducting is required. We work around your operational hours.
How It Works
Our Proven 5-Step Process
Site Survey
We map your space, identify cable routes, assess existing infrastructure, and document every endpoint requirement.
Design
Our engineers create a detailed network topology with cable schedules, patch panel layouts, and labeling schemes.
Installation
Certified technicians install cable trays, run Cat6/Cat6a cables, terminate patch panels, and implement cable management.
Testing
Every cable run is tested with Fluke equipment for signal integrity, crosstalk, and return loss — documented with full reports.
Certification
Your installation receives manufacturer warranty coverage and Backspace certification — backed by ongoing support.
What's Included
Everything Your Network Needs
A complete structured cabling deployment — from initial design to final certification.
ROI Analysis
The Business Case for Quality Cabling
Faster Troubleshooting
Labeled, organized cables mean technicians find and fix issues in minutes, not hours.
Network Uptime
Enterprise-grade cabling eliminates random drops and signal degradation.
Reduction in Downtime Costs
Reliable infrastructure means fewer outages and less lost revenue.
Before & After
The Transformation
Before
- Cables draped across floors and ceilings
- No labeling — impossible to trace connections
- Random switches and hubs wherever they fit
- No documentation — knowledge lives in one person's head
After
- Clean, routed cables through dedicated trays
- Every cable labeled at both ends with unique IDs
- Centralized patch panels in organized racks
- Full as-built diagrams and documentation
Case Study
150-User Campus Network Overhaul
Nakasero, Kampala
Challenge
A growing organization with 150 staff members across 3 floors was experiencing daily network drops. Their existing cabling was a decade old, unlabeled, and mixed Cat5 with Cat5e — causing cascading failures during peak hours.
Solution
Backspace conducted a full site survey, designed a new structured cabling backbone using Cat6a throughout, installed dedicated cable trays, and deployed 12 patch panels with complete labeling. All 450 cable runs were Fluke-tested and certified.
Results
- Zero network drops reported in the first 90 days
- Troubleshooting time reduced from 4 hours to 20 minutes
- Network capacity increased to support 200+ endpoints
- Full documentation handed over for future maintenance
FAQ
Common Questions
What cable type do you recommend for a modern office?
For most offices, we recommend Cat6a — it supports 10 Gigabit Ethernet up to 100 meters and provides headroom for future upgrades. For budget-sensitive projects, Cat6 offers excellent performance at a lower cost.
How long does a structured cabling installation take?
A typical 20-50 drop installation takes 2-3 days. Larger projects (100+ drops across multiple floors) typically take 1-2 weeks. We work around your business hours to minimize disruption.
What certification do you provide?
Every installation is Fluke-tested and certified to TIA/EIA-568 standards. You receive a full test report documenting signal quality, crosstalk, and return loss for every cable run — along with manufacturer warranty coverage.
Can you work with my existing cable infrastructure?
Yes. We often integrate new runs into existing setups, upgrading critical paths while preserving working infrastructure. We'll assess what can stay and what needs replacing during the site survey.
Ready to Build Your Network Right?
Get a free site survey and custom cabling design from a Backspace engineer.
